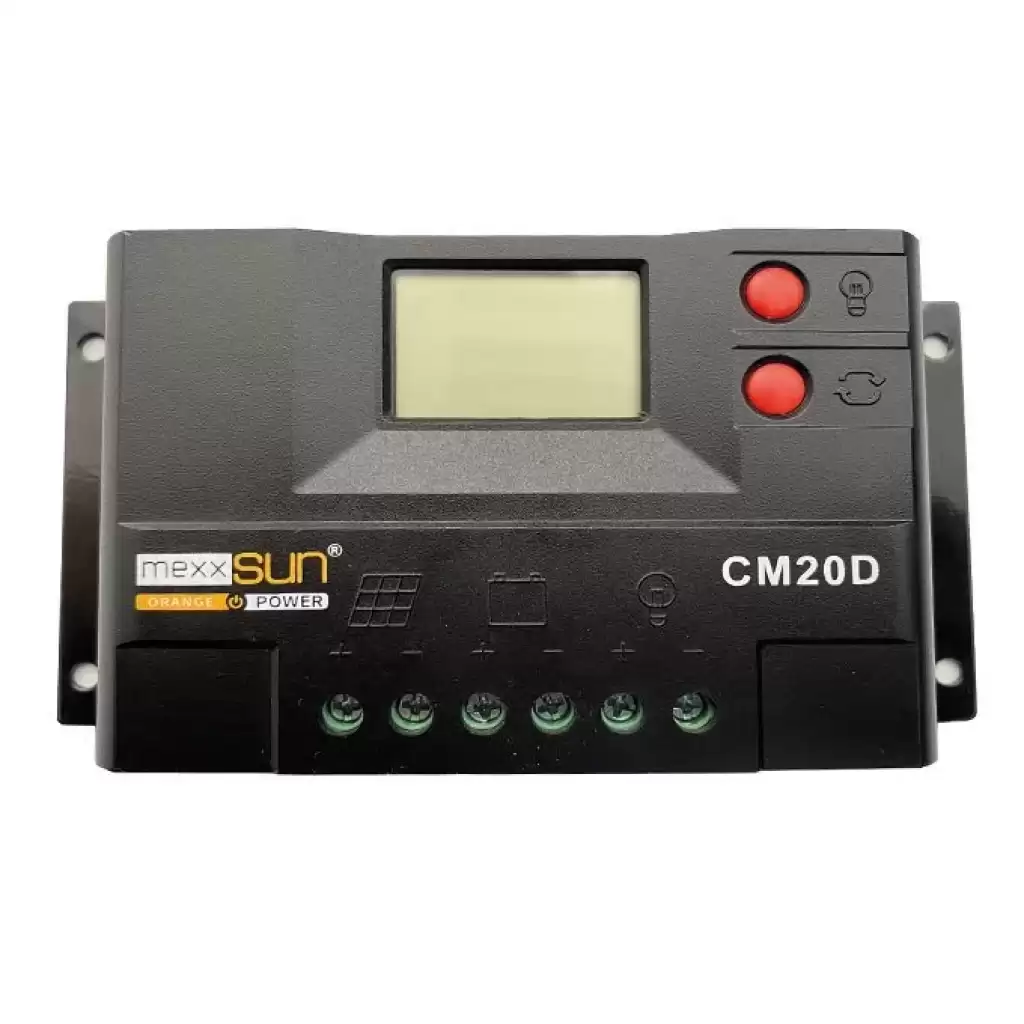

Mexxsun 20A PWM Şarj Regülatörü 12/24V
- Lcd ekranlı
- Kolay kullanım butonları
- 12 / 24 volt otomatik
- Pwm şarj modu
- Ayarlanabilir şarj deşarj
- Ayarlanabilir yük çalışma modu
| | Teknik Data: | | |
| | | | Model | : | CM20D | | Rated current | : | 10A12V24V/20A12V24V | | Rated voltage | : | 12V/24V Automatic Identification | | Voltage of solar panel | : | ≤50V | | Floating charge | : | 13.8V/27.6V | | Under-voltage protection | : | 10.7V/21.4V | | Under-voltage recovery | : | 12.6V/25.2V | | Boost voltage | : | b01 Sealed 14.4V /28.8VV14.4V/28.8V
(Duration: 2hours) | | | : | b02 Gel14.2V/28.4V | | | : | b03 Flooded 14.6V/29.2V | | Open circuit losses | : | ≤13mA | | Charge and discharge voltage drop | : | ＜0.2V|＜0.1V | | Charging mode | : | PWM mode | | Temperature compensation | : | -4mV/Cell/℃（to be customized） | | Specification of the cables | : | ≤5# AWG (6mm2) | | Working temperature | : | -20℃~60℃ | | Storage temperature | : | -30℃~70℃ | | Temperature requested | : | ≤90％,No condensation | | Dimension | : | 88 mm×160 mm×37 mm | | diameter of mounting hole | : | 64 mm×150 mm --Φ5 | | Weight | : | 230g |
|
| | | | |
|
|
| | | |  |
