TommaTech Uno Atom 1.5kW Tek Faz İnverter

TommaTech Uno Atom 1.5kW Single Phase Inverter

Single-Phase (Uno) Inverters

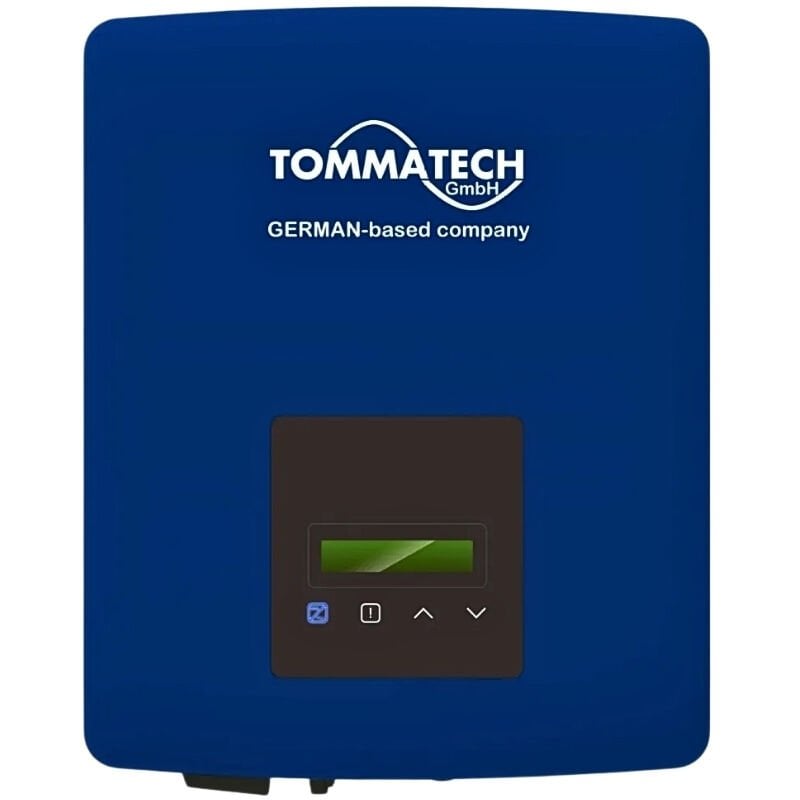

TommaTech Uno Atom 1.5kW Single Phase Inverter

TommaTech Uno-Atom Series Single-Phase String Inverters are designed and developed for smaller solar panel arrays. With a maximum efficiency of 98% and a low onboarding voltage of 55V, Uno-Atom Inverters deliver superior performance, helping to generate the maximum amount of energy possible from your solar power system. Furthermore, the IP65 protection certification provides flexibility in terms of installation and usage areas.

• High Efficiency
• Remote Monitoring Options
• Easy Installation & Assembly
• Low Start-up Voltage
• Wide Operating Voltage Range
• Natural Cooling Method
• LCD Control Screen
• 10 Years (5 Years Product + 5 Years Parts Warranty)

• Model Type: Uno-A-1.5
• Maximum PV Array Power (Wp): 2250W
• Maximum DC Voltage (V): 400V
• Nominal DC Operating Voltage (V): 360V
• Maximum Input Current (A): 12A
• Maximum Short Circuit Current (A): 14A
• MPPT Voltage Range (V): 55-380V
• Switching Voltage (V): 70V
• Number of MPPTs: 1
• Number of MPPT Array Inputs: 1
• Nominal AC Power (VA): 1500VA
• Maximum AC Apparent Power (VA): 1650VA
• Nominal Mains Voltage (AC Voltage Range): 220 / 230 / 240; 180~280
• Nominal Network Frequency (Hz): 50 / 60±5
• Nominal AC Current (A): 6.52A
• Maximum AC Current (A): 7.2A
• Displacement Power Factor: 0.8 Ahead ~ 0.8 Behind
• Total Harmonic Distortion (THdi), Rated Power (%): <3
• MPPT Efficiency (%): 99.9%
• European Productivity (%): 96%
• Maximum Efficiency (%): 97.1%
• Standby Power Consumption (Night) (W): <1
• High Voltage Protection: Yes
• High Current Protection: Yes
• DC Isolation Impedance Monitoring: Yes
• Grounding Current Fault Monitoring: Yes
• DC Current Injection Monitoring: Yes
• Residual Current Relay Protection: Yes
• Safety: IEC62109-1/-2
• Electromagnetic Compatibility (EMC): EN61000-6-1; EN61000-6-2; EN61000-6-3; EN61000-3-2; EN61000-3-3
• Certificates: G98; AS4777; VDE4105; EN50549; CEI0-21
• Protection Class (according to IEC60529): IP65
• Operating Temperature Range [°C]: -25~+60 (efficiency loss 45)
• Maximum Working Height (m): <2000
• Moisture Content (%): 0~100 (non-condensing)
• Storage Temperature (oC): -25~+60
• Noise Emission (dB): <25
• Dimensions (Width x Height x Depth): 267 x 328 x 116mm
• Weight: 6kg
• Cooling Method: Natural
• Topology: Non-isolated
• Communication Interface: Pocket WiFi (Optional) / Pocket LAN (Optional) / Pocket GPRS (Optional) / Counter (Optional) / RS485 / DRM / USB Update
• LCD Screen Standard: Yes
• Warranty (Years): 5-10

​
