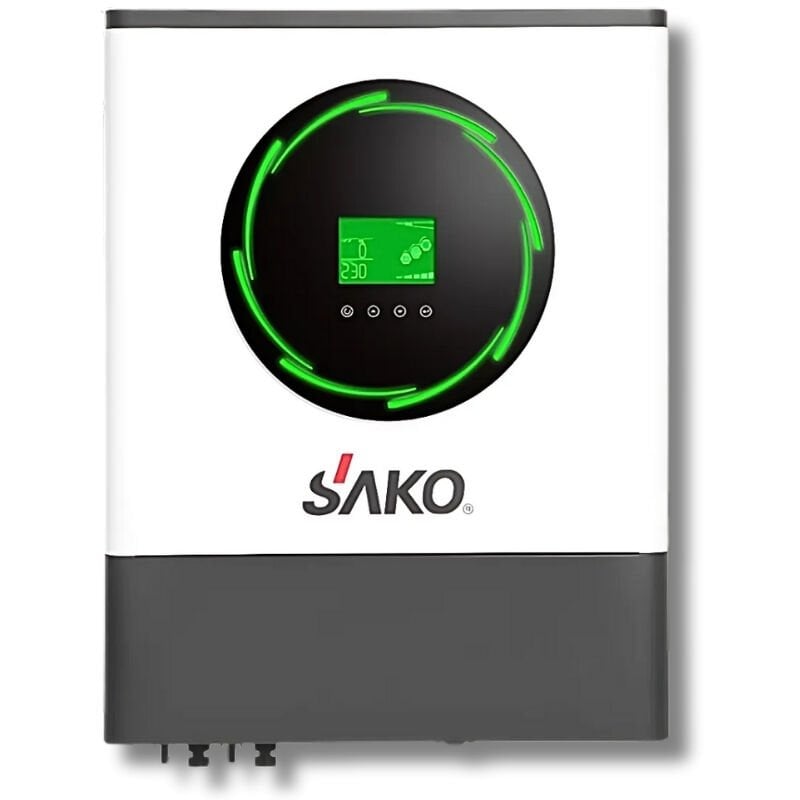

Sako Sunon IV 8kW 48V MPPT Smart Inverter (450VDC)
%56
26.302,03 TL
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
WhatsApp ile Sipariş Ver
Sako Sunon IV 8kW 48V MPPT Smart Inverter (450VDC) 8 kW • 16000 VA Peak 2×4000 W PV • MPPT 90–450 V • VOC 500 V
48V system • Pure sine wave output • 120A solar/AC charger • USB/RS232/RS485/Wi-Fi
The Sunon IV 8kW is an intelligent inverter designed for high-capacity 48V battery systems, producing a pure sine wave output and supporting high-voltage PV input. With 8 kW continuous power, 16000 VA peak, 2 x 4000 W PV, and MPPT 90–450 VDC (Max VOC 500 VDC ), it offers efficient and reliable energy conversion in residential, commercial, and industrial off-grid/hybrid projects.
Key Advantages
- High power capacity: 8 kW continuous, 16000 VA inrush — ideal for motor loads/compressors.
- Pure sine wave: Fully compatible with sensitive electronics and inverter-driven devices.
- Wide PV range: MPPT 90–450 VDC, Max VOC 500 VDC — long series arrays, low cable loss.
- Powerful charging infrastructure: 120 A solar MPPT charger + 120 A AC charger (Total max. 120 A).
- Smart connectivity: Monitoring/configuration via USB, RS232, RS485, and local Wi-Fi .
- Flexible mains input: UPS mode 170–280 VAC, User mode 90–280 VAC; 50/60 Hz automatic.
- Advanced protections: Low battery, overload, high temperature, and overcharge protection.
Installation Safety: The PV side carries high DC voltage (VOC 500 VDC). Consider module VOC values and cold weather correction in array planning. Use appropriate DC disconnectors, fuses/MCBs, surge protectors (SPDs), grounding , and MC4 connectors. Installation must be performed by authorized personnel.
Technical Specifications
| Feature | Value |
|---|---|
| Nominal Power | 8 kW |
| Peak (Demeraj) Power | 16000 VA |
| Battery Voltage | 48 VDC |
| Network Access / Frequency | 230 VAC • 50/60 Hz (Auto) |
| Input Voltage Range | UPS: 170–280 VAC • User: 90–280 VAC |
| AC Output (Battery Mode) | 230 VAC ± 5% • Pure Sine Wave |
| Battery Thresholds | Low voltage warning 44 V • Cut-off 42 V • Reconnect 46 V |
| Float/Overcharge Protection | 54 VDC / 63 VDC |
| Solar (MPPT) | 2×4000 W • MPPT 90–450 VDC • Max VOC 500 VDC |
| Solar Charging Current | 120 A |
| AC Charging Current | 120 A |
| Total Maximum Charging Current | 120 A |
| Links | USB, RS232, RS485, Wi-Fi (local) |
| Size / Weight | 232 × 510 × 232 mm / 18.4 kg |
Areas of Application
- Industrial installations: High-power machinery, motor loads, compressors.
- Commercial establishments: Markets, workshops, offices, and small production lines.
- Solar energy systems: Off-grid/hybrid solutions with 48V LiFePO₄/Gel/AGM batteries.
Usage & Installation Recommendations
- Plan the PV array modules in series/parallel so that the total Voc ≤ 500 VDC ; apply cold climate correction.
- For high starting current loads, consider a peak capacity of 16000 VA ; perform load grouping during startup.
- Select the appropriate charging profile for your battery type; use cables of sufficient cross-section, fuses/MCBs, SPDs, and grounding.
“Sako Sunon IV 8kW 48V pure sine wave MPPT inverter – 2×4000W PV, MPPT 90–450V, VOC 500V, 120A solar/AC charging, 16000VA peak; intelligent control via USB/RS232/RS485/Wi-Fi.”
