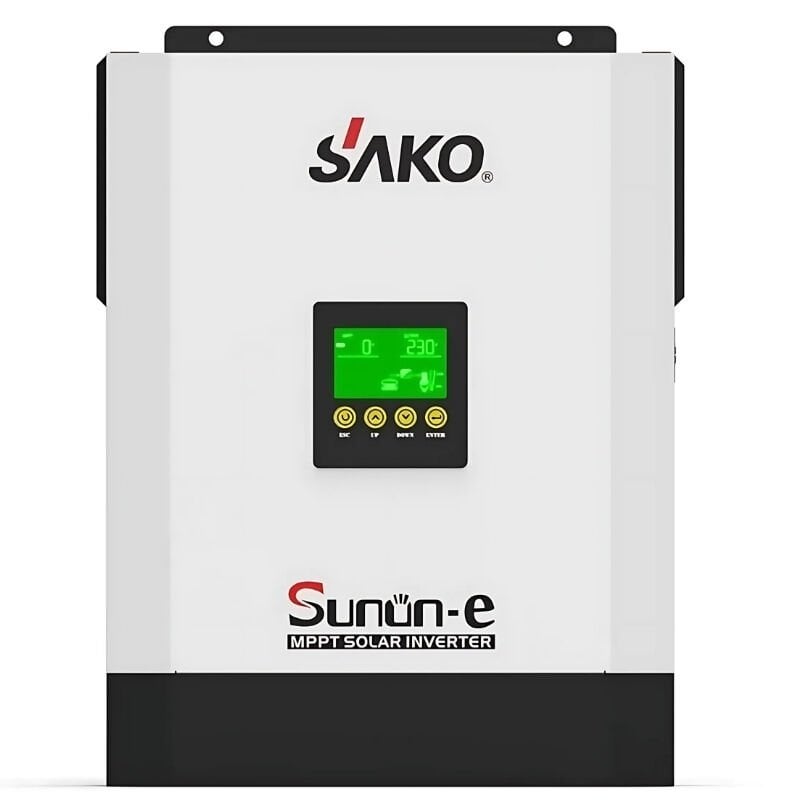

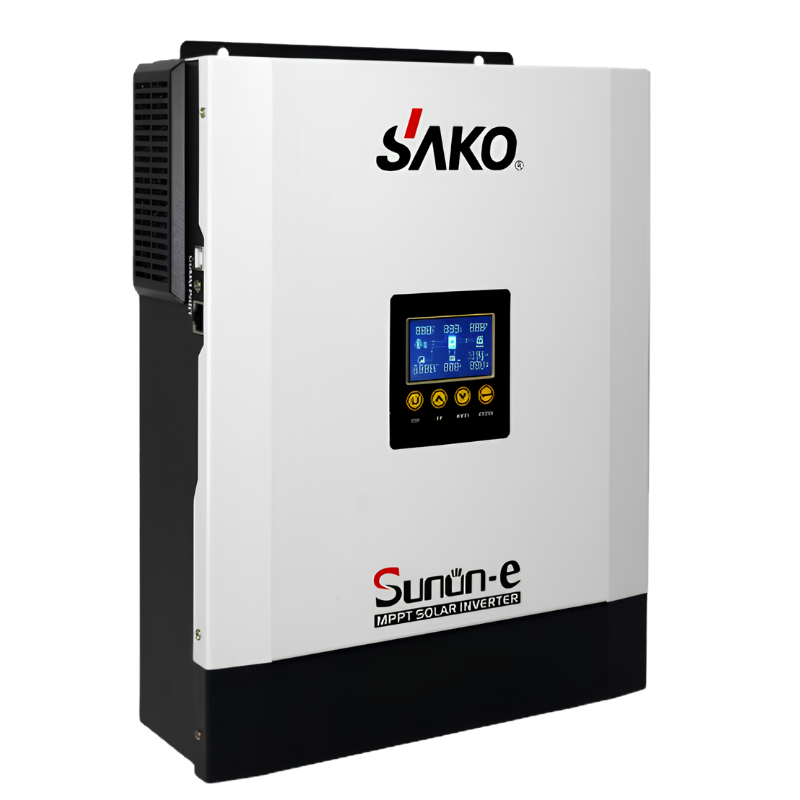

Sako Sunon-e MPPT 24V 2.4Kw (450-500VDC) Pure Sine Wave Smart Inverter
%40
10.886,58 TL
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
WhatsApp ile Sipariş Ver
Sako Sunon-E MPPT 24V Pure Sine Wave Smart Inverter 2700W / 3000VA PV 3200W • VOC 450V • MPPT 60–430V
24V system • Pure sine wave output • High PV voltage MPPT • 6000VA peak power
Sunon-E is an intelligent inverter powered by a 24V battery, producing a pure sine wave and supporting high-voltage PV input. With 2700W (3000VA) continuous power, 6000VA surge, MPPT 60–430 VDC (Max. VOC 450 VDC ), and support for 3200W PV, it offers an efficient and flexible solution for residential, workshop, and mobile off-grid applications.
Key Advantages
- Pure sine wave output: Compatible with sensitive loads such as computers, TVs, and inverter-powered appliances.
- Wide PV range: MPPT 60–430 VDC, Max VOC 450 VDC — advantageous for long series array setups and slim cabling.
- Powerful charging infrastructure: 80 A MPPT solar charging + 60 A AC charging — fast battery recovery.
- Flexible mains input: UPS mode 170–280 VAC , User mode 90–280 VAC ; 50/60 Hz automatic.
- 24V system advantage: Compatible with common LiFePO₄/Gel/AGM batteries; easy installation and maintenance.
Installation Safety: The PV side carries high DC voltage (VOC 450 VDC). Plan the array according to the module VOC values; use appropriate DC disconnectors, fuses/MCBs, surge protectors (SPDs), and MC4s.
Use a connector. Installations must be performed by authorized personnel.
Use a connector. Installations must be performed by authorized personnel.
Technical Specifications
| Feature | Value |
|---|---|
| Nominal Power | 3000 VA / 2700 W |
| Peak (Demeraj) Power | 6000 VA |
| Battery Voltage | 24 VDC |
| Network Access | 230 VAC, 50/60 Hz (Auto), UPS: 170–280 VAC • User: 90–280 VAC |
| AC Output (Battery Mode) | 230 VAC ± 5%, Pure Sine Wave |
| Solar Charge (MPPT) | 80 A – MPPT 60–430 VDC , Max VOC 450 VDC |
| Maximum PV Power | 3200 W |
| AC Charging Current | 60 A |
| Float/Overcharge Protection | 27 VDC / 32 VDC |
| Size / Weight | 363 × 297 × 107 mm / 5.0 kg (net), 5.8 kg (gross) |
Areas of Application
- Home and summer houses: basic lighting, electronics and household appliances (with appropriate power)
- Caravan/boat: 24V battery-based mobile power systems
- Workshop/small business: computers, POS terminals, small motorized loads.
- Emergency backup power: uninterrupted supply during power outages.
Usage & Installation Recommendations
- Adjust the charging profile according to the manufacturer's recommendation for your battery type (LiFePO₄/Gel/AGM).
- The PV array Voc total should not exceed 450 VDC ; consider cold weather correction.
- For high starting current loads (compressor, pump, etc.), consider a peak capacity of 6000 VA .
- Install using cable of appropriate cross-section, fuse/MCB, and grounding.
“Sako Sunon-E 24V 2.7kW (3000VA) full sine MPPT inverter – PV 3200W, MPPT 60–430V, VOC 450V, 80A solar and 60A AC charging, 6000VA inrush.”
