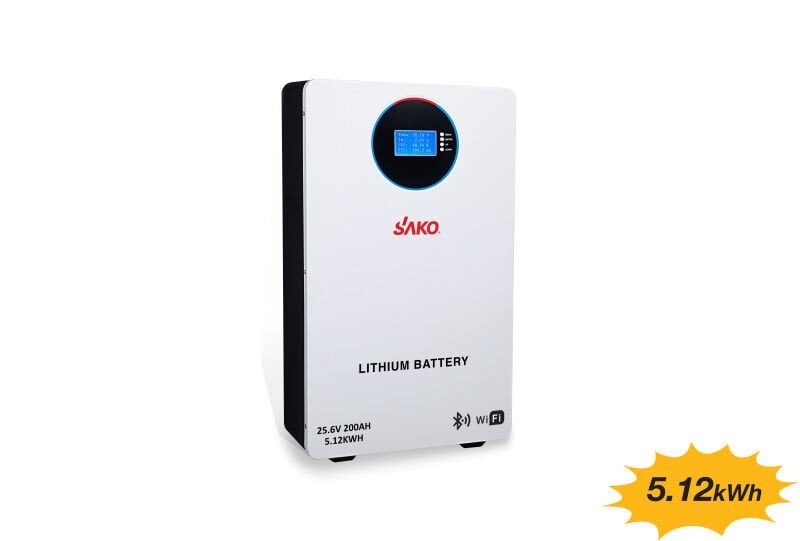

Sako LiFePO 4 Battery 25.6V 200Ah Li-Pack (5.12 kWh) >6000 cycles LiFePO 4 • LFP
Advanced protections • 100A continuous charge/discharge • Compact and safe Li-Pack
The Sako 25.6V 200Ah LiFePO4 Li -Pack , with its 5.12 kWh capacity, long cycle life, and integrated protections, offers a reliable , efficient , and durable energy storage solution for solar energy, backup power, and industrial applications.
Key Advantages
- High energy: 5.12 kWh capacity easily powers both basic and burst loads.
- Long service life: ≥ 6000 cycles (25 °C, 0.5C, 80% DoD) with low total cost of ownership.
- Safety: Overcharge/discharge, short circuit, overcurrent, and temperature protection.
- Performance: 100A continuous charge/discharge, 150A instantaneous discharge (1 s).
- Practical installation: Compact housing, only ~ 52 kg ; IP20 for indoor use.
Areas of Application
- Solar energy systems (off-grid/hybrid)
- Backup power (UPS, emergency)
- Telecommunications infrastructures
- Industrial energy solutions
- Electric vehicles/AGVs, mobile equipment
- Portable power systems
Technical Specifications
| Feature | Value |
|---|---|
| Chemical | LiFePO4 (LFP) |
| Nominal Voltage | 25.6 V |
| Capacity | 200 Ah (5.12 kWh) |
| Operating Voltage Range | 22.4–29.2 V |
| Float Voltage | 28.0 V |
| Maximum Continuous Charge/Discharge | 100 A / 100 A |
| Maximum Instantaneous Discharge | 150 A (1 s, 25 °C) |
| Cycle Life | ≥ 6000 cycles (@25 °C, 0.5C, 80% DoD) |
| Protective Features | Overcharging/discharging, overcurrent, short circuit, high temperature. |
| Operating Temperature | -10 °C ~ +50 °C |
| Dimensions (L×W×H) | 568 × 734 × 188 mm |
| Weight (Net/Gross) | ~ 52 kg / 58 kg |
| IP Class | IP20 (indoor) |
| Certificates | UN38.3, MSDS |
Note: Lifespan and performance may vary depending on depth of discharge (DoD), temperature, and C rating.
Installation & Usage Recommendations
- Use the compatible LFP charge profile (CC-CV) and the correct current/temperature limits.
- In serial/parallel expansion, pair modules with the same capacity/age.
- Install in a well-ventilated, dry, and shaded area, in accordance with IP20 rating.
“Sako 25.6V 200Ah LiFePO4 Li-Pack — 5.12 kWh, >6000 cycles, 100A continuous charge/discharge, advanced protections; ideal for solar and industrial storage.”
