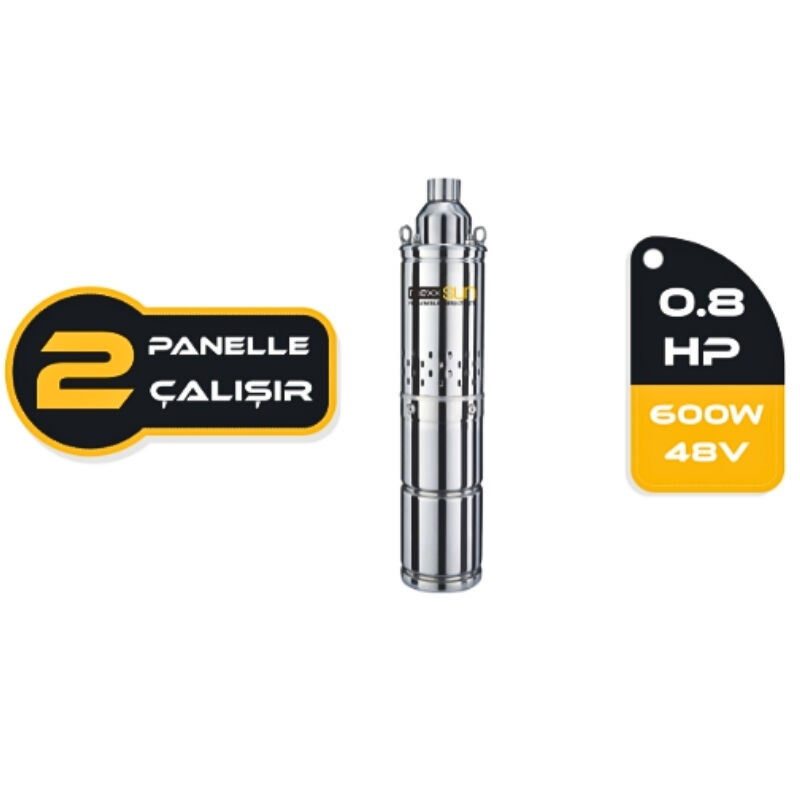

Mexxsun Dc Pump 0,8hp 600w (screw Type) (4ss600-48n)

Mexxsun DC Pump 0,8HP 600W (Screw Type) (4SS600-48N)

The Mexxsun DC Pump 0.8HP 600W (Screw Type) offers an excellent solution for water pumping applications with its screw design and high efficiency. Operating at DC 48V, it effectively utilizes solar energy, significantly reducing energy costs.

Performance and Efficiency: It can pump water from depths up to 47 meters and transport up to 1 ton of water per hour. Its performance improves at shallower depths, reaching a capacity of 2.5 tons/hour at 6 meters.
Solar Power Compatibility: This model is compatible with two 540W solar panels. Maximum power is achieved by connecting the panels in series. It provides a reliable water source in areas without electricity.
Durability and Longevity: The screw-on design guarantees durability and a long service life. It offers wide compatibility with the G1¼" standard used in water outlet connections.
Application Areas:
- Agricultural irrigation
- Water supply for livestock farming.
- Water storage in rural areas
- Garden irrigation systems

Mexxsun DC Pump is an economical and effective choice for users who need environmentally friendly and sustainable energy solutions. With its integrated solar power operation principle, it offers high performance at a low cost.

Mexxsun DC Pump 0.8HP 600W Technical Specifications

Model: DC-PUMP 0.8 Hp 600W
Type: Screw Type
Motor Power: 600W (0.8 HP)
Operating Voltage: DC 48V

Performance Capacity:
- At a depth of 47 m: 1 ton/hour
- At a depth of 20 m: 2 tons/hour
- At a depth of 6 m: 2.5 tons/hour

Flow Rate Values:
- 60 m: 0.5 m³/hour
- 55 m: 1 m³/hour
- 47 m: 1.5 m³/hour
- 40 m: 2 m³/hour
- 35 m: 2.2 m³/hour
- 21 m: 2.5 m³/hour

Panel Usage: 2 x 450W solar panels (connected in series)
Water Outlet Connection: G1¼"

​
