Kadıoğlu Nano Yc300eko Plant Sprayer

Kadıoğlu NANO YC300EKO Plant Sprayer

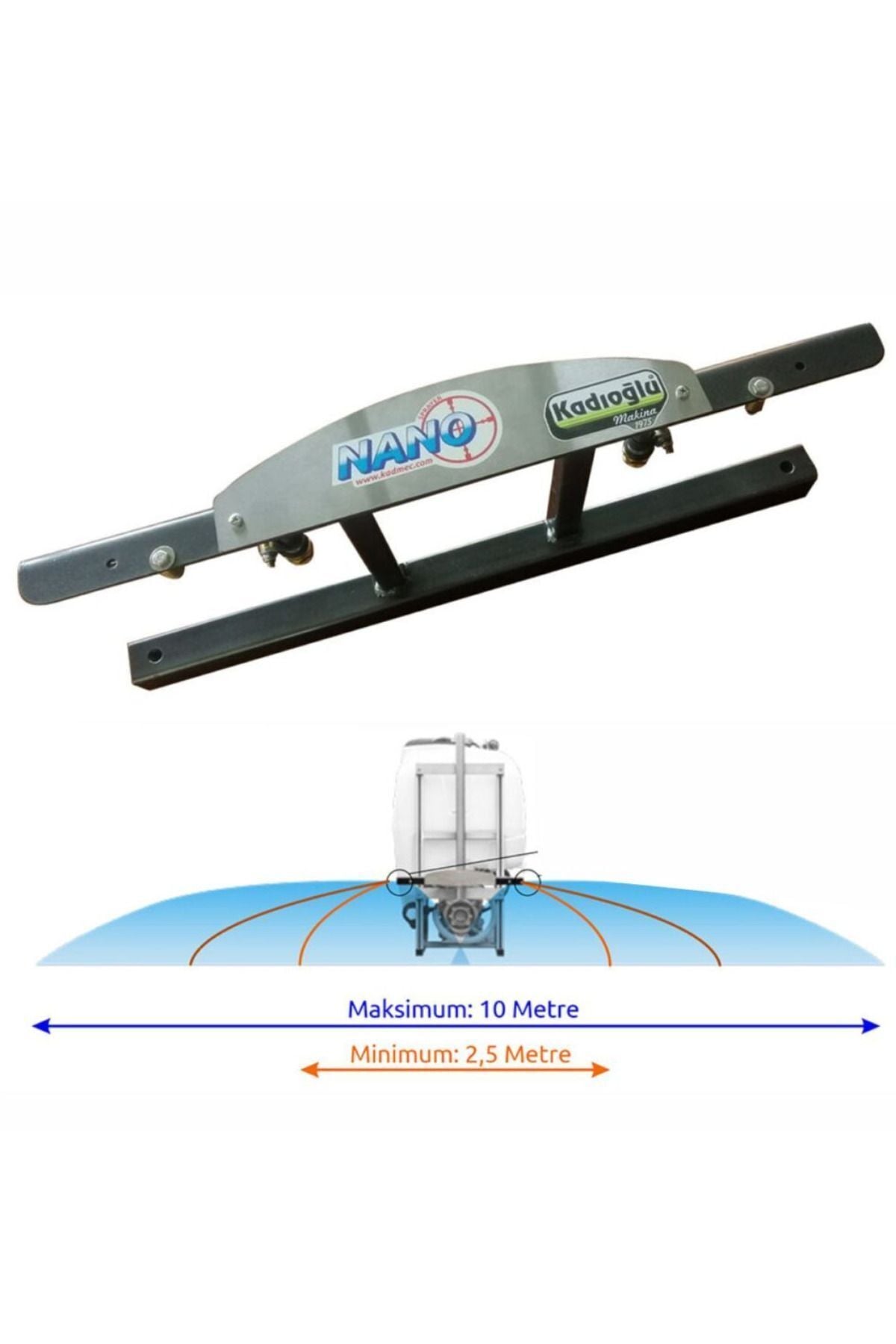

The Kadıoğlu NANO Plant Sprayer is a plant sprayer that can be easily mounted on all spray tanks. With Nano, it's possible to apply pesticides over a working width of 2.5 - 10 meters. Used with a pump pressure of 2 - 5 bar, the NANO Plant Sprayer sprays the pesticide without creating dust. The pesticide falls like a very fine rain and distributes homogeneously. Specially designed nozzles cut through fine particles, preventing them from flying around. This makes it possible to spray without touching the tree leaves.
This plant spraying apparatus, used especially in areas where all perennial plants are grown, such as olive groves, orchards, and walnut groves, is also preferred for pre-planting pesticide applications in field crops.

Average consumption when spraying at 4 bar pressure and 6 km/h speed:
If pesticide is applied over a width of 8 meters at a speed of 6 km/h, an average of 137 liters of water will be consumed per 10 acres.
If pesticide is applied over a 10-meter width at a speed of 6 km/h, an average of 210 liters of water will be consumed per 10 acres.
(You can determine the most accurate application rate by testing with your own tank. By measuring the amount of water lost from the tank according to the distance you travel with the tractor, you can calculate the appropriate pesticide-to-water ratio.)

• Custom-made nozzles with a 4-year warranty.
• Easy assembly and easy to use.
• Can be mounted on the rear of a tank or the front of a tractor.
• Its narrow and lightweight design does not restrict the tractor's maneuverability in the garden.

Technical Specifications

Origin	Türkiye
Energy Source	Sprayer Pump
Pressure Requirement	Between 2 and 5 Bar
Model	YC300EKO
Brand	Kadioglu Machinery
