Havensis Dual Charger 40 Ah MPPT Charge Controller and DC-DC Charger with Dual Boost Mode
%27
13.774,85 TL
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
WhatsApp ile Sipariş Ver

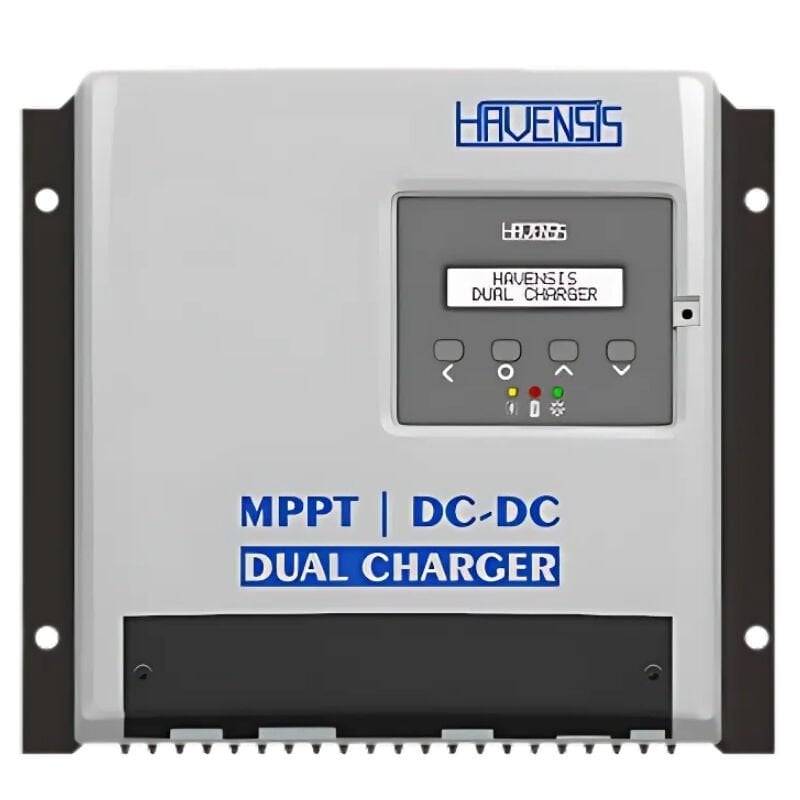

Havensis Dual Charger 40A MPPT & DC-DC Battery Charger – Dual Boost Mode
Havensis DUALCHARGER-4030AMD is a hybrid energy solution that combines an MPPT solar panel charge controller with a bidirectional DC-DC battery charger in a single unit. With its advanced boost mode, LCD display, Bluetooth-enabled monitoring screen, and charge limiting function, it is specifically designed for caravans, marine applications, and off-grid systems.
Key Features
- 60A total charging capacity
- MPPT + Bidirectional DC-DC Charging Technology
- 99.6% MPPT tracking and 97.5% transducer throughput (MPPT)
- 96.4% DC-DC converter efficiency
- 2 x independent relay outputs (20A)
- Temperature sensor connection
- Bluetooth-enabled LCD screen and external display connection (MSMPORT)
- Charging current limiting and protection circuits
Technical Specifications
Havensis DUALCHARGER-4030AMD is a hybrid energy solution that combines an MPPT solar panel charge controller with a bidirectional DC-DC battery charger in a single unit. With its advanced boost mode, LCD display, Bluetooth-enabled monitoring screen, and charge limiting function, it is specifically designed for caravans, marine applications, and off-grid systems.
Key Features
- 60A total charging capacity
- MPPT + Bidirectional DC-DC Charging Technology
- 99.6% MPPT tracking and 97.5% transducer throughput (MPPT)
- 96.4% DC-DC converter efficiency
- 2 x independent relay outputs (20A)
- Temperature sensor connection
- Bluetooth-enabled LCD screen and external display connection (MSMPORT)
- Charging current limiting and protection circuits
Technical Specifications
| Model | DUALCHARGER-4030AMD |
| Operating Voltage | 12V systems |
| Total Charging Current | 60A |
| MPPT Charging Current | 40A |
| DC-DC Charging Current | 30A |
| Booster Current | 3A (maximum 4A) |
| Maximum Panel Power | 750W |
| Maximum Panel Voltage | 100V |
| MPPT Efficiency | 99.6% |
| Converter Efficiency | 97.5% (MPPT) / 96.4% (DC-DC) |
| Load Output | 2 x 20A Relays |
| Links | LCD screen, Bluetooth, MSMPORT, temperature sensor |
| Device Dimensions | 274 x 245 x 100 mm |
Areas of Application
- Caravan energy systems
- Boat and yacht energy solutions
- Off-grid solar energy systems
- Backup energy management systems
Guarantee
The product comes with a 2-year manufacturer's warranty. Free technical service and parts replacement are provided when used according to the installation and usage instructions.
