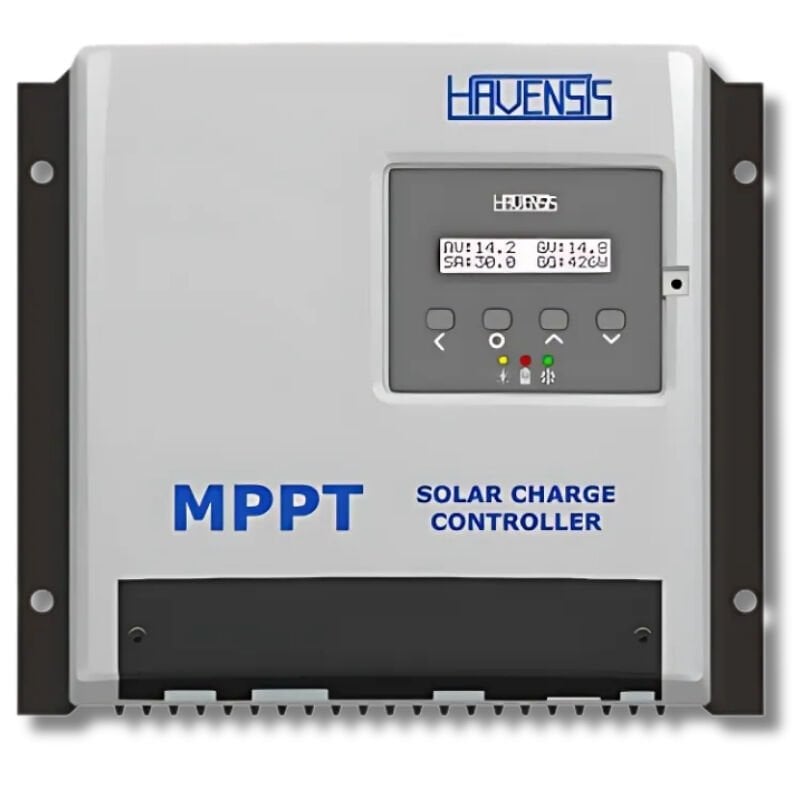

Havensis Solar-80AMPS MPPT 12/24/36/48V 80A Solar Charge Controller
The Havensis Solar-80AMPS MPPT Charge Controller, with its advanced multi-point MPPT algorithm, transfers the energy produced by your solar panels to your batteries with maximum efficiency. Its compatibility with 12V, 24V, 36V, and 48V systems makes it an ideal solution for high-capacity projects and off-grid systems.
Key Features
- 99.6% MPP tracking efficiency with multi-point MPPT algorithm.
- Multi-phase synchronous rectifier design with 97.5% converter efficiency.
- Wide compatibility with dry, wet, gel, and lithium batteries.
- Adjustable charging current and voltage parameters
- Ability to recharge deeply discharged batteries
- LCD screen and 3-color LED status indicator
- Integrated operation with SCADA and PLC systems via RS-485 Modbus RTU.
Technical Specifications
Advantages of Use
- High efficiency and reliable performance in off-grid systems.
- Maximum energy harvesting with advanced MPPT algorithm.
- Wide system compatibility with multi-voltage support.
- Professional monitoring and control capabilities.
The Havensis Solar-80AMPS MPPT Charge Controller, with its advanced multi-point MPPT algorithm, transfers the energy produced by your solar panels to your batteries with maximum efficiency. Its compatibility with 12V, 24V, 36V, and 48V systems makes it an ideal solution for high-capacity projects and off-grid systems.
Key Features
- 99.6% MPP tracking efficiency with multi-point MPPT algorithm.
- Multi-phase synchronous rectifier design with 97.5% converter efficiency.
- Wide compatibility with dry, wet, gel, and lithium batteries.
- Adjustable charging current and voltage parameters
- Ability to recharge deeply discharged batteries
- LCD screen and 3-color LED status indicator
- Integrated operation with SCADA and PLC systems via RS-485 Modbus RTU.
Technical Specifications
| Model | Solar-80AMPS - 12/24/36/48V - 80A |
| Compatible System Voltages | 12V / 24V / 36V / 48V |
| Maximum Solar Panel Power | 6800W |
| Maximum Panel Input Voltage | 150V |
| Maximum Charging Current | 80A |
| Converter Efficiency | 97.5% |
| MPP Monitoring Performance | 99.6% |
| Screen | LCD screen + 3-color LED indicator |
| Protective Features | Panel reverse current, PV & battery reverse connection, overload, temperature-related power reduction. |
| Communication | RS-485 Modbus RTU |
| Dimension | 280mm x 235mm x 100mm |
Advantages of Use
- High efficiency and reliable performance in off-grid systems.
- Maximum energy harvesting with advanced MPPT algorithm.
- Wide system compatibility with multi-voltage support.
- Professional monitoring and control capabilities.
