Deye Grid-Connected 5 kW MPPT Single-Phase On-Grid Inverter
%16
37.503,14 TL
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
WhatsApp ile Sipariş Ver

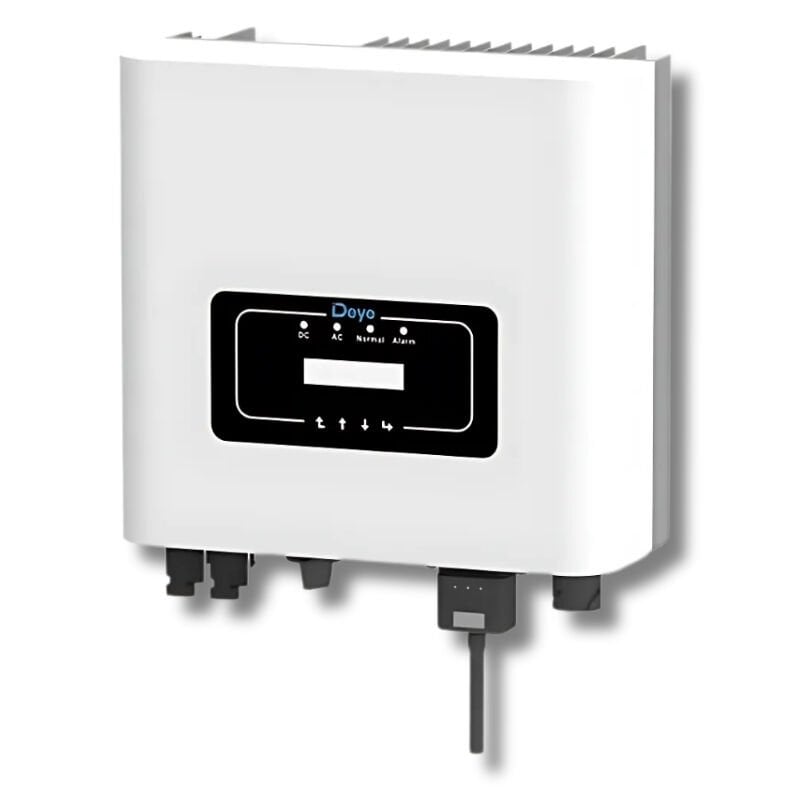

Deye Grid-Connected 5 kW MPPT Single-Phase On-Grid Inverter
The Deye 5 kW MPPT Single-Phase On-Grid Inverter is a single-phase solar inverter ideal for residential and small commercial applications, distinguished by its high efficiency, advanced protection systems, and wide MPPT range. It provides reliable energy conversion by connecting directly to the grid. System management is easy with modern communication interfaces and intelligent monitoring support. With its IP65 protection rating, it is also resistant to outdoor conditions.
The Deye 5 kW MPPT Single-Phase On-Grid Inverter is a single-phase solar inverter ideal for residential and small commercial applications, distinguished by its high efficiency, advanced protection systems, and wide MPPT range. It provides reliable energy conversion by connecting directly to the grid. System management is easy with modern communication interfaces and intelligent monitoring support. With its IP65 protection rating, it is also resistant to outdoor conditions.
| Technical Specifications | |
|---|---|
| PV Input Data | |
| Maximum PV Input Power | 6.5 kW |
| Maximum PV Input Voltage | 550 V |
| Starting Voltage | 80 V |
| MPPT Voltage Range | 70 - 500 V |
| Nominal PV Input Voltage | 360 V |
| Maximum Operating Input Current | 18 + 18 A |
| Maximum Short Circuit Current | 27 + 27 A |
| MPPT Tracker / Sequence Number | 2 / 1+1 |
| AC Output Data | |
| Nominal AC Active Power | 5.0 kW |
| Max. AC Apparent Power | 5.5 kVA |
| Nominal AC Output Current | 22.8 / 21.8 A |
| Maximum AC Output Current | 25 / 24 A |
| AC Output Voltage | 220/230 V |
| Network Connection Type | L/N/PE |
| Frequency Range | 45–55 Hz / 55–65 Hz |
| Power Factor | 0.8 from the front – 0.8 from the rear |
| THDi | <%3< td> |
| DC Injection Current | <0.5% In |
| Productivity | |
| Maximum Efficiency | 97.5% |
| European Yield | 97.0% |
| MPPT Efficiency | >99% |
| Protective Features | |
| Features include DC Reverse Polarity, AC Overcurrent, Overvoltage, Short Circuit, Thermal, Insulation Monitoring, Island Mode, RCD, and Ground Leakage Protection. | |
| Communication & Monitoring | |
| Interface | RS485 / RS232 |
| Monitoring | GPRS, WiFi, Bluetooth, 4G, LAN (optional) |
| General Information | |
| Operating Temperature | -25°C to +60°C |
| Humidity Range | 0–100% |
| Permitted Height | 3000 m |
| Protection Class | IP65 |
| Dimensions | 305 × 280 × 180 mm |
| Weight | 7.7 kg |
