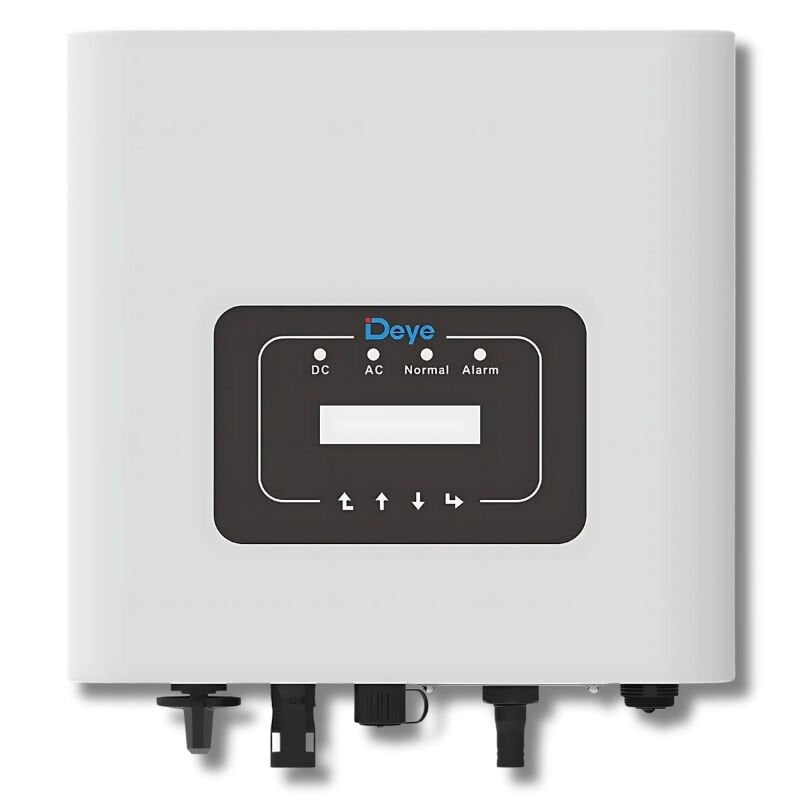

Deye Grid-Connected 3 kW MPPT Single-Phase On-Grid 3 kVA Inverter
%35
15.905,62 TL
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
WhatsApp ile Sipariş Ver
Deye Grid-Connected 3 kW MPPT Single-Phase On-Grid (3 kVA) Inverter High efficiency • MPPT • Compact • IP65
The Deye 3 kW on-grid inverter offers maximum performance in residential and commercial solar energy systems with up to 97% efficiency , intelligent MPPT tracking, and IP65 protection. Its battery-free architecture reduces investment costs; its compact and lightweight housing makes installation easy.
Key Advantages
- High efficiency: Instantaneous maximum power tracking from the panel via MPPT, 97% inverter efficiency.
- Battery-free operation: Low total cost with grid-connected architecture.
- User-friendly: Digital display, remote monitoring/management (optional), and easy commissioning.
- Durable design: IP65 protection rating; suitable for indoor/outdoor use, compact and lightweight.
- Safety: Safe operation with protection against overheating, short circuits, reverse polarity, etc.
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Power | 3 kVA / 3000 W (Single-phase) |
| Maximum Efficiency | ≈ 97% |
| MPPT Technology | Var (1 × MPPT / 1 string) |
| Maximum DC Input Power | 3.6 kW |
| Max. DC Voltage / Starting | 550 V / 80 V |
| MPPT Voltage Range | 70 – 550 V |
| Maximum DC Input Current | 12.5 A |
| AC Output (Nominal) | 220 V AC (single phase) |
| Protection Class | IP65 (suitable for outdoor use) |
| Dimensions / Weight | 330 × 310 × 115 mm / 6 kg |
| Certificates | CE, IP65 |
| Guarantee | 5 Years |
Areas of Application
- Residential rooftop solar power projects
- Small-scale commercial enterprises
- Summer houses / country houses (parallel to the grid)
- Solar power plant installations that power electric vehicle charging infrastructure.
- Self-consumption systems in agriculture and farms.
Installation Notes
- One MPPT and one string input; plan the panel layout according to the MPPT voltage range.
- On the DC side, use an MC4 compatible connector, UV-resistant solar cable of appropriate cross-section, and a DC disconnect switch/fuse .
- Mount the inverter in a shaded, well-ventilated spot; even though it's IP65 rated, protecting it from direct rain/sunlight will extend its lifespan.
- Network connection must be made in accordance with local distribution company regulations and authorized personnel rules.
“The Deye 3 kW single-phase on-grid inverter offers high performance and reliability in residential and commercial solar power systems with MPPT, 97% efficiency, 550V DC, and IP65 protection.”
