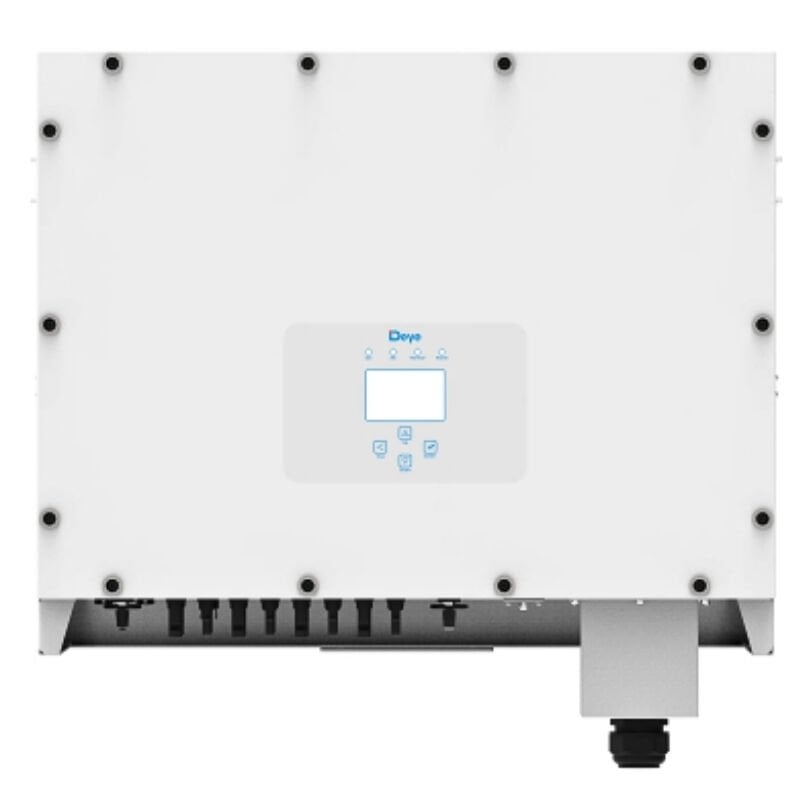

Deye 60kw Three Phase Ongrid Inverter
%30
124.401,48 TL
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
12 Aya Varan Taksit İmkanı
Havale ile ödemelerde%3 indirim
WhatsApp ile Sipariş Ver
Deye 60 kW Three-Phase On-Grid Inverter , 98.7% Efficiency, 5-Year Warranty.
Commercial & Industrial Solar Power Plant • 4×MPPT • Remote Management • IP65
The Deye 60 kW Three-Phase On-Grid Inverter delivers maximum energy harvesting from solar panels with its high power class , 98.7% maximum efficiency, and 4 MPPT architecture. With IP65 protection, intelligent cooling, and remote software/parameter management, it offers reliable, uninterrupted, and sustainable operation in large-scale projects.
Key Advantages
- High power: 60 kW nominal, 66 kW maximum active power.
- Superior performance: 99%+ MPPT efficiency and a wide 200–850 V MPPT range.
- Intelligent operation: Remote configuration/software update, LCD 240×160 screen.
- Durability: IP65 rated housing, intelligent cooling, <55 dB low noise.
- Safety: DC reverse polarity, short circuit, overcurrent/overvoltage, ground leakage and DC injection <0.5% In.
Technical Specifications
| Feature | Value |
|---|---|
| Maximum DC Input Power | 78 kW |
| Max. DC Input Voltage / Starting | 1000 V / 250 V |
| MPPT Voltage Range | 200–850 V |
| Number of MPPTs / Array | 4 MPPTs / 3 arrays per MPPT |
| Maximum DC Input Current / Short Circuit | 40+40+40+40 A / 60+60+60+60 A |
| Nominal / Max. AC Power | 60 kW / 66 kW |
| Nominal Mains Voltage / Phase | 220/380 V , 230/400 V (3L/N/PE) – Three-phase |
| Nominal / Max. AC Current | 90.9 / 87 A (nominal) • 100 / 95.7 A (max) |
| Maximum Yield / MPPT Yield | 98.7% / 99+% |
| THD (Nominal) / DC Injection | <3% / <0.5% In |
| Frequency | 50/60 Hz (optional) |
| Dimensions / Weight | 700W×575H×297Dmm / ≈60kg |
| Protection Class / Noise | IP65 / <55 dB |
| Cooling / Nighttime Consumption | Smart cooling / <1 W |
| Operating Temperature / Altitude | −25 ~ +65 °C (>45 °C power reduction) / ≤2000 m |
| Interface / Monitoring | RS485, RS232, Wi-Fi, LAN • LCD 240×160 |
| Links | DC: MC-4 compatible • AC: IP65 plug |
| Standards | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/-2 |
| Guarantee | 5 Years |
Areas of Application
- Commercial facilities such as shopping malls, hotels, and hospitals
- Industrial production and storage areas
- Large-scale rooftop/ground floor type solar power projects
- Corporate campus and office buildings
Note: The array distribution for the MPPT must be correctly planned, and cable cross-sections/protective elements (DC circuit breaker, fuse, surge arrester) must be selected according to relevant standards. Commissioning and network compatibility settings must be performed by an authorized technical team.
“Deye 60 kW three-phase on-grid inverter – 98.7% efficiency, 4 MPPTs, IP65. A powerful and reliable solution for commercial and industrial solar power plants.”
